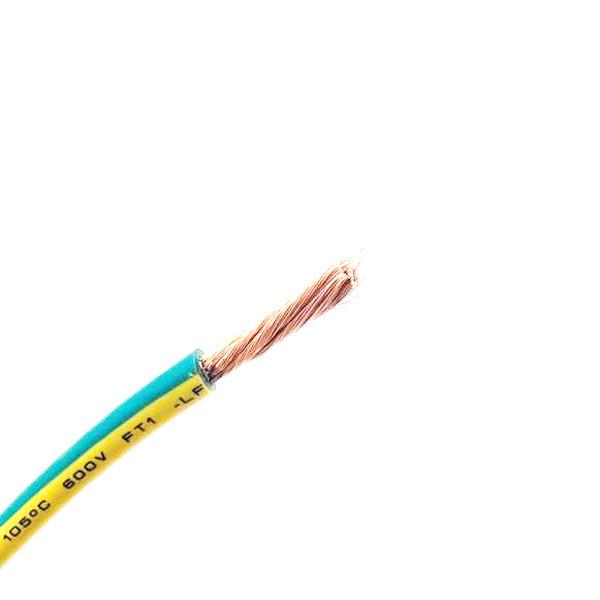

6AWG UL10455 Conductor Bare Stranded Copper Copper Green Yellow

Ask Lasest Price
Brand Name :	Hwatek
Model Number :	UL10455
Certification :	ISO9001, UL, CCC, RoHS
Price :	$0.2-1
Payment Terms :	T/T
Supply Ability :	30KM/Day
Delivery Time :	4-5 Weeks

Add to Cart

Product Details
Company Profile

6AWG UL10455 Conductor Bare Stranded Copper Copper Green Yellow

6AWG, UL10455, Conductor- Bare Stranded copper, 90 deg C, 600 V, PVC, COLOR-GREEN/YELLOW Cable

UL758-E258652-20060111A-CertificateofCompliance(2)...

Product Description

ITEM		6AWG(266/0.254B)
CONDUCTOR	Material	Bare copper stranded
	Size	266/0.254mm
	O.D.(Ref)	5.1mm
INSULATION	Material	PVC
	Min.average thickness	1.08mm
	Min.thickness at any point	1.2mm
	O.D.	7.7±0.30mm
CABLING	Assembly	6AWG(266/0.254B)
JACKET	Material	PVC
	Min.average thickness	0.76mm
	Min.thickness at any point	0.61mm
	O.D.	9.30±0.30mm

Construction
Conductor : stranded, tinned or bare copper
Insulation: PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL10455
RoHS,REACH Compliant,

Technical data
Rated voltage:600V
Rated Temperature:90℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance

Extensively oil resistant
Flexible

6AWG UL10455 Conductor Bare Stranded Copper Copper Green Yellow

Company Profiles

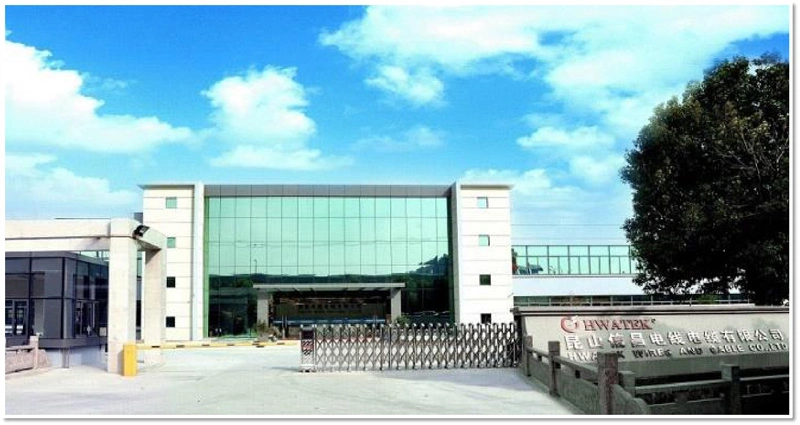

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
